  • Steel construction for strength and stability
  • Optional bore and shaft sizes
  • Nickel-plated hub to resist rusting, to maintain constant torque
  • Torque tubes are standard to eliminate over-tightening the compression springs
  • Adjustable torque by adding or removing spring assemblies
  • Bronze bushings for longevity and dependability in the adapter and pressure plate

Inline Torque Limiter Series

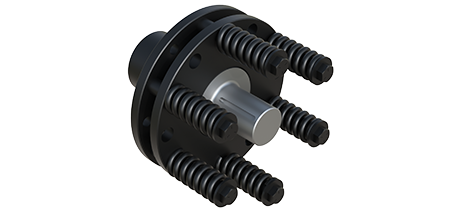

torque limiter clutch

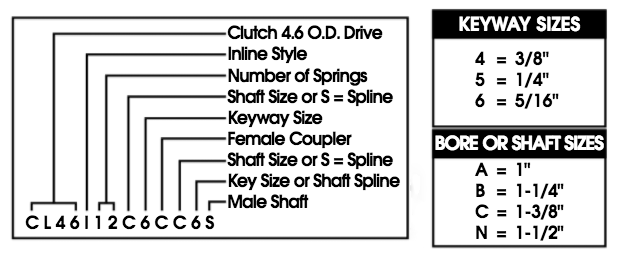

Explanation of Inline Torque Limiters Item Numbers

inline torque

Standard Female Sizes
B5, C6 and 540 PTO 6-Spline

Standard Male Sizes
B5, B6, C6, N4 and 540 PTO 6-Spline

Torque is adjusted by adding or removing springs and torque tube assemblies.

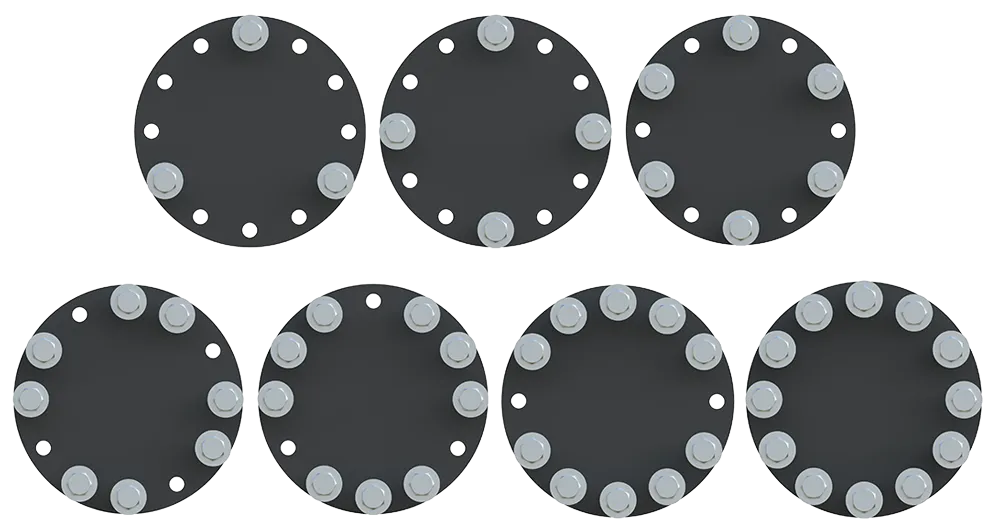

torque spring pattern

Spring pattern is designated by light gray circles.

# of Springs
FT. LBS Torque
3 170
4 210
6 250
8 295
9 335
10 375
12 500
