| Part Number |
Draw Pin Size
A
|
Ball Housing Diameter
B
|
Draw Pin to Hold Mtg
C
|
Bolt Hole Size
D
|
Housing Thickness
E
|
Height (for Drawbar Strap)
F
|
Overall Length
G
|
Weight
|
|
|---|---|---|---|---|---|---|---|---|---|
|
Category 3 & 4
|
BPF-CAT 4JDF | 1-1/2", 2" | 5-1/2" | 6-1/4" | 1" Bolt | 2" | 2-3/4" | 13-1/2" | 32 lbs. |
|
Category 5
|
BPF-CAT 5JDF | 2-1/2", 2-3/4" | 6-5/8" | 6-3/8" | 1" Bolt | 2" | 3-3/8" | 14" | 35 lbs. |
|
Category 3 & 4
|

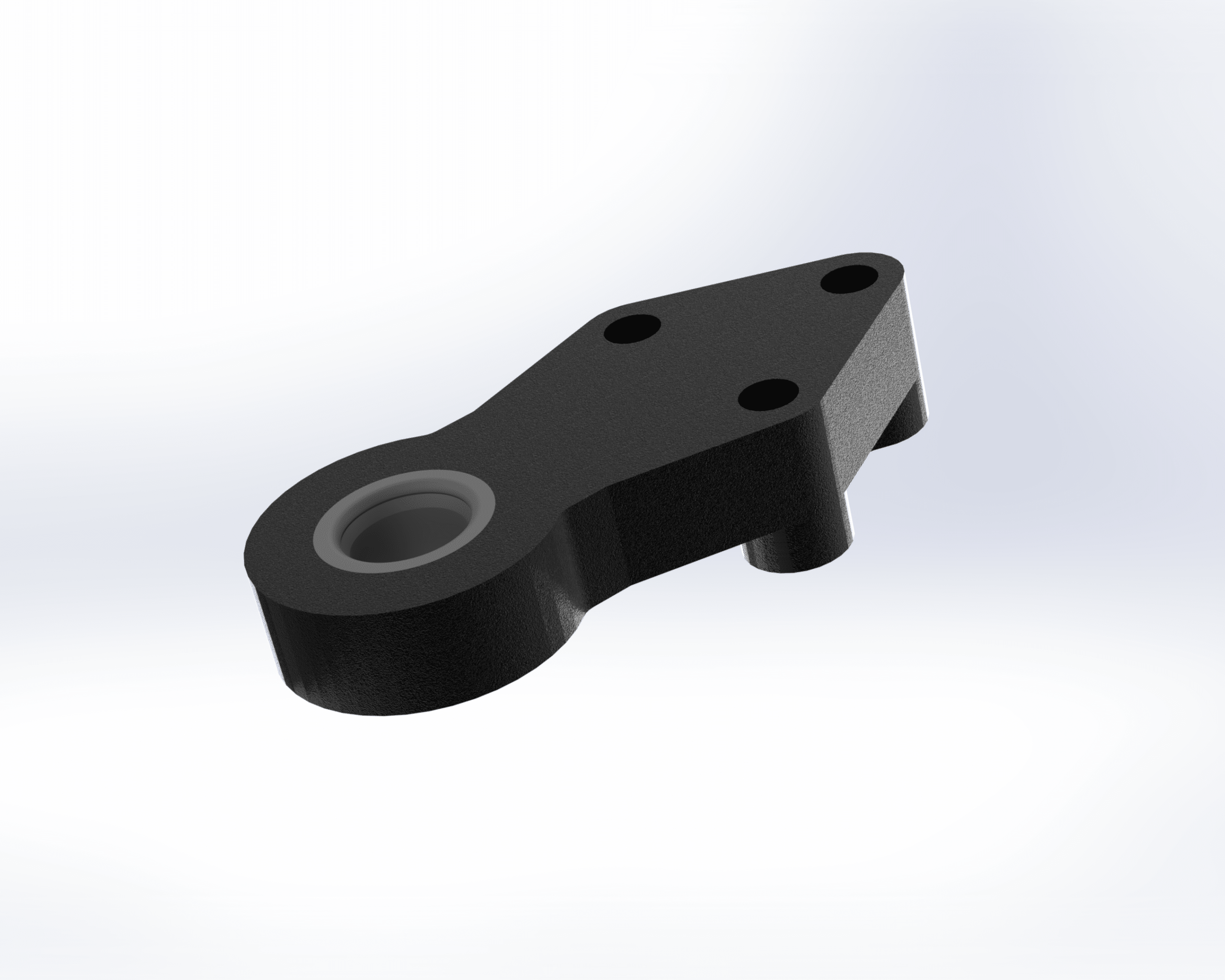

BPF-CAT 4KF | 1-1/2" OR 2" | 5-1/2" | 6-1/4" | 1" Bolt | 2" | 2-3/4" | 13-1/2" | 31.7 lbs. |
|
Category 5
|
BPF-CAT 5KF | 2-3/4" | 6-5/8" | 6-1/4" | 1" Bolt | 2" | 2-3/4" | 14" | 34.5 lbs. |
