T-bar Chain Sprockets

Product Guide

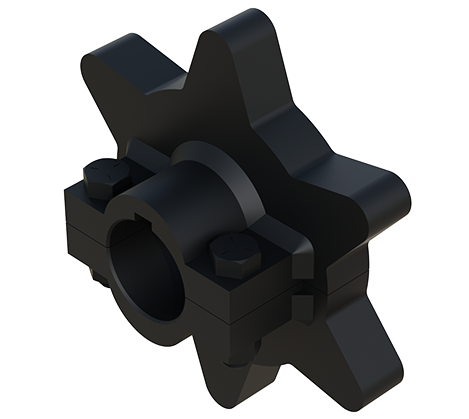

sprocket t-bar
SPROCKET SERIES
 67T
CHAIN PITCH (INCHES)
 2.56
Chain Roller Diameter
 1.187"
Plate Thickness
 3/4"
Common Designations
 T67 – 67 T-BAR
NUMBER OF TEETH
 PITCH DIAMETER
6 5.12
7 5.90
8 6.69
9 7.48
10 8.28
11 9.09
12 9.89
13 10.70
14 11.50
15 12.31
16 13.12
17 13.93
18 14.74
19 15.55
20 16.36

Black Ace Sprockets play an integral role when conveying product. Whether it’s on an assembly line that runs 24/7 or an agricultural harvester used annually, production halts when sprockets don’t perform.

  • ASME Standard Torch Profiles – Elongated Root Design promotes a self-cleaning effect of the root to keep your demanding applications moving.
  • A – B – C Hub Types
    • A Type (no hub) typically used in weld-on applications.
    • B Type (hub on one side) used in applications where clearance width is narrow. More economical than C Type.
    • C Type (hub on both sides) used in applications where B Type is not wide enough to withstand torques produced by drive.
  • Split Style Construction – Once you use a Split Sprocket, you may never want to use a setscrew mount style again. Removal or installation is a breeze. Can be used in virtually all applications. An additional benefit to Black Ace’s split sprockets is that the shaft/keyway security is much tighter than a typical setscrew mount.
  • Hardening Available – Flame hardening of sprockets is available as an option.
