Agricultural Roller Chain Sprockets

Product Guide

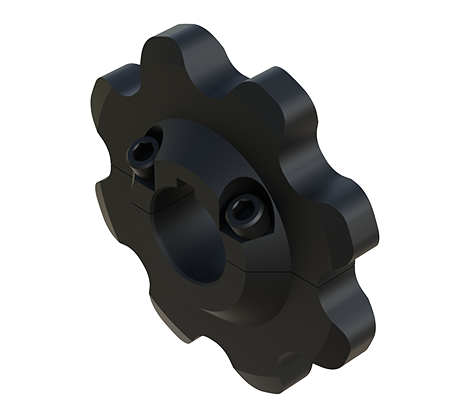

sprocket agricultural
# OF TEETH
SPROCKET
OUTSIDE DIAMETER
550 CHAIN
6 5506 3.98
7 5507 4.48
8 5508 4.98
9 5509 5.49
10 55010 6.00
11 55011 6.51
12 55012 7.02
13 55013 7.53
14 55014 8.05
15 55015 8.56
16 55016 9.08
17 55017 9.59
18 55018 10.11
19 55019 10.62
20 55020 11.14
555 CHAIN
6 5556 3.94
7 5557 4.43
8 5558 4.94
9 5559 5.44
10 55510 5.95
11 55511 6.46
12 55512 6.97
13 55513 7.49
14 55514 8.00
15 55515 8.52
16 55516 9.03
17 55517 9.55
18 55518 10.06
19 55519 10.58
20 55520 11.10
557 CHAIN
6 5576 3.98
7 5577 4.48
8 5578 4.98
9 5579 5.49
10 55710 6.00
11 55711 6.51
12 55712 7.02
13 55713 7.53
14 55714 8.05
15 55715 8.56
16 55716 9.08
17 55717 9.59
18 55718 10.11
19 55719 10.62
20 55720 11.14
620 CHAIN
6 6206 4.02
7 6207 4.53
8 6208 5.04
9 6209 5.55
10 62010 6.07
11 62011 6.59
12 62012 7.11
13 62013 7.63
14 62014 8.15
15 62015 8.67
16 62016 9.19
17 62017 9.72
18 62018 10.24
19 62019 10.76
20 62020 11.29

Black Ace Agricultural Roller Chain Sprockets are manufactured with the highest integrity. You will realize value, as these sprockets are flame-cut and machined with the highest precision available on the market.

  • ANSI Standard Torch Profiles – Engineered to promote the best life of your sprockets and chain.
  • Styles Available
    • A Type (no hub) typically used in weld-on applications.
    • B Type (hub on one side) used in applications where clearance width is narrow. Typically have two (2) setscrews on the hub to fasten the sprocket to shaft and keyway.
    • Split Style Construction – Once you use a Split Sprocket, you may never want to use a setscrew mount style again. Removal or installation is a breeze. Can be used in virtually all applications. An additional benefit to Black Ace’s split sprockets is that the shaft/keyway security is much tighter than a typical setscrew mount.
    • Split Style Narrow Width – Enjoy the benefits of split style construction and keep the total sprocket width only slightly wider than the sprocket tooth thickness.
    • Hex Bore Split Style – Used in equipment that uses hexagon shafts.
    • Idler Style – Assembled with a long-lasting Black Ace Ball Bearing.

Request Sprocket Information:

Please customize all of the custom detail options in order to receive information about a specific sprocket.
Standard Sprocket Thickness 5/8"
