Steel Pillow Blocks
Four Bolt Flange Mount
| Part Number |
Outer Bearing Race
A
|
Flange Square
B
|
Thickness
C
|
Bolt Hole Spacing
E
|
Center Spacing
F
|
Mounting Bolt Size
G
|
Zerk Size
H
|
Availability
|
|
|---|---|---|---|---|---|---|---|---|---|
| BH72F | 72MM | 5" | 1" | 3-5/8" | 2-1/2" | 1/2" | 1/4-28NF | MADE TO ORDER | |

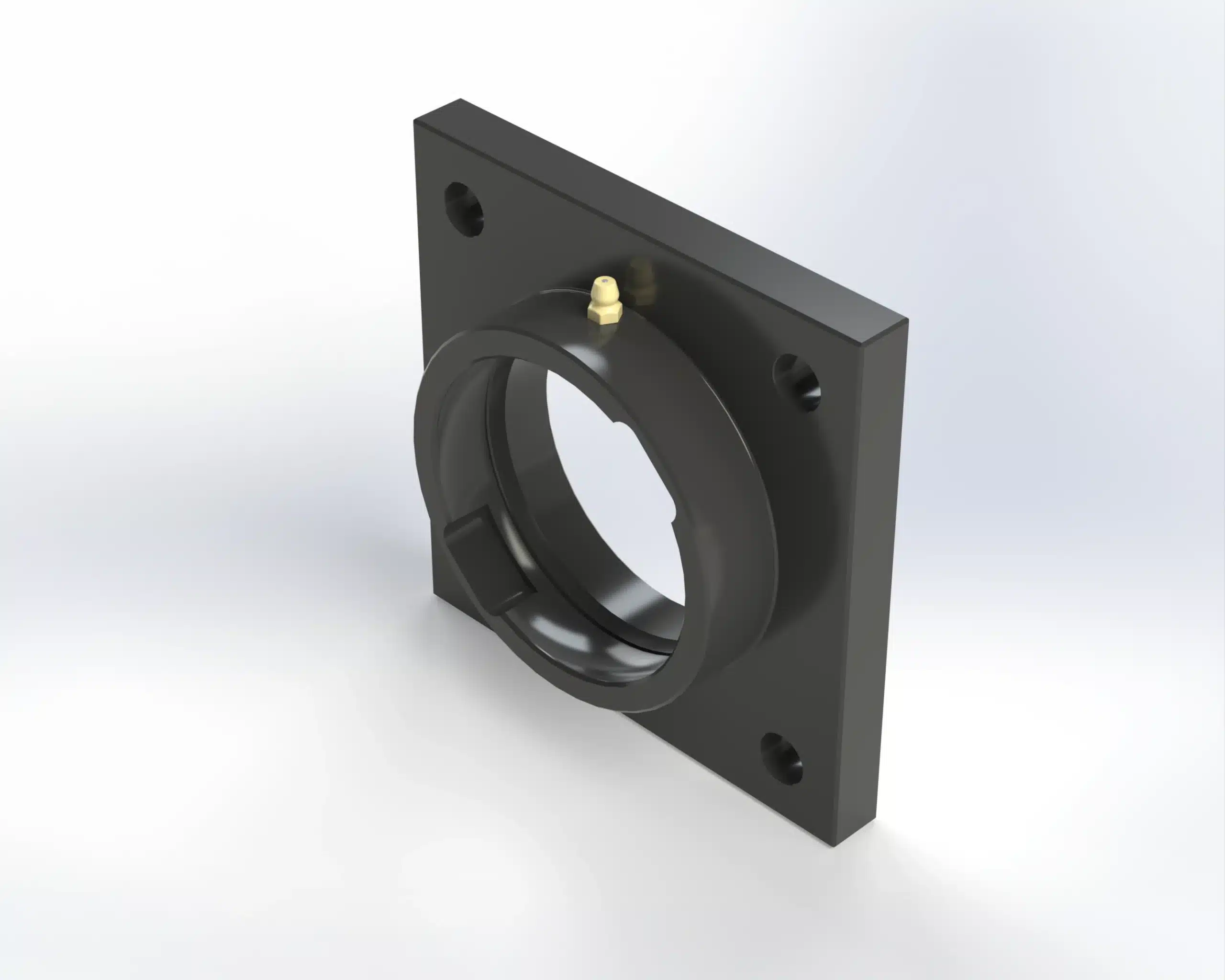

| BH85F | 85MM | 5-1/2" | 1-1/2" | 4-1/8" | 2-3/4" | 1/2" | 1/4-28NF | MADE TO ORDER | |

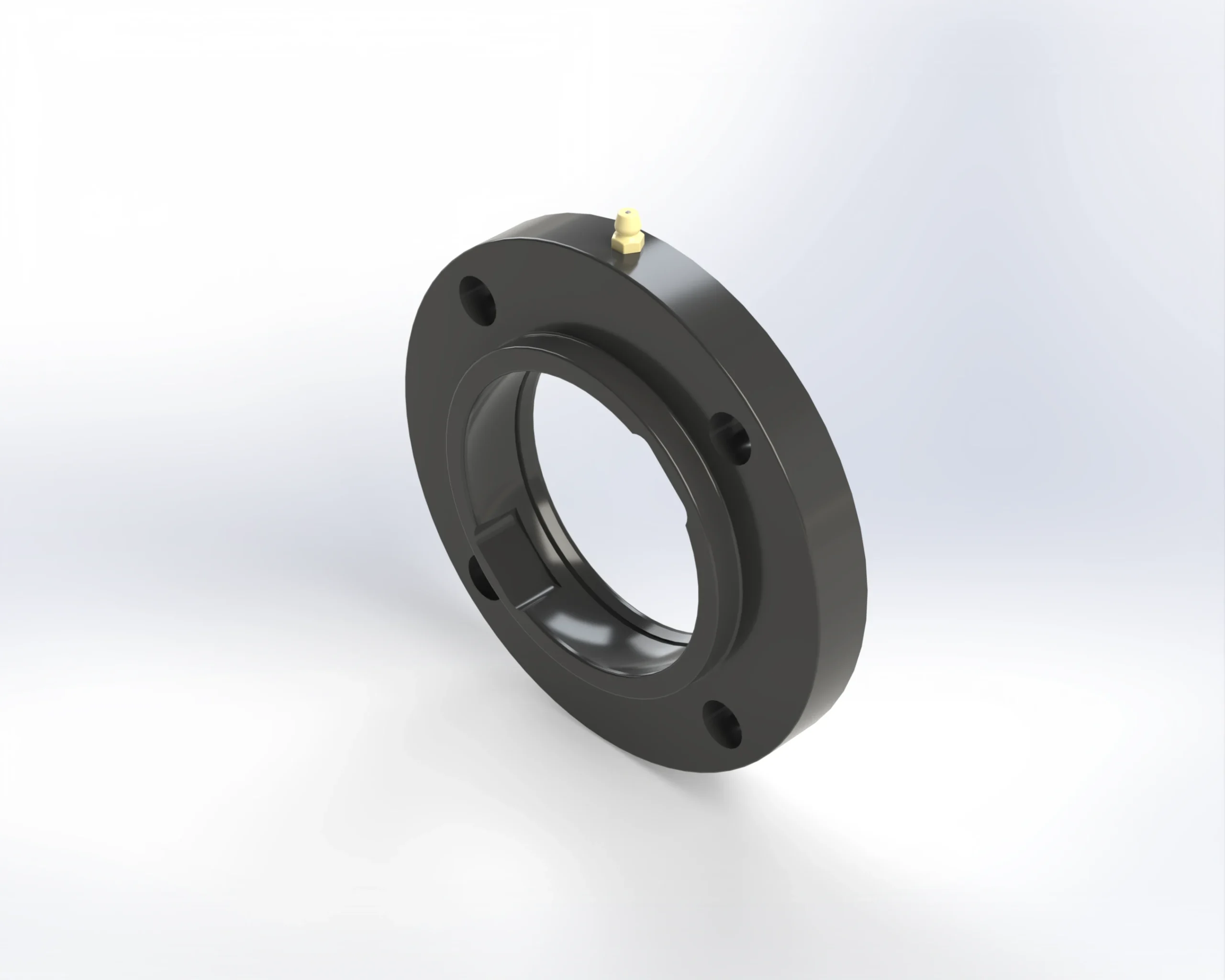

| BH8537 | 85MM | 5-3/4" ROUND | 1" | 3-3/8" | 2-3/8" | 1/2" | 1/4-28NF | MADE TO ORDER | |

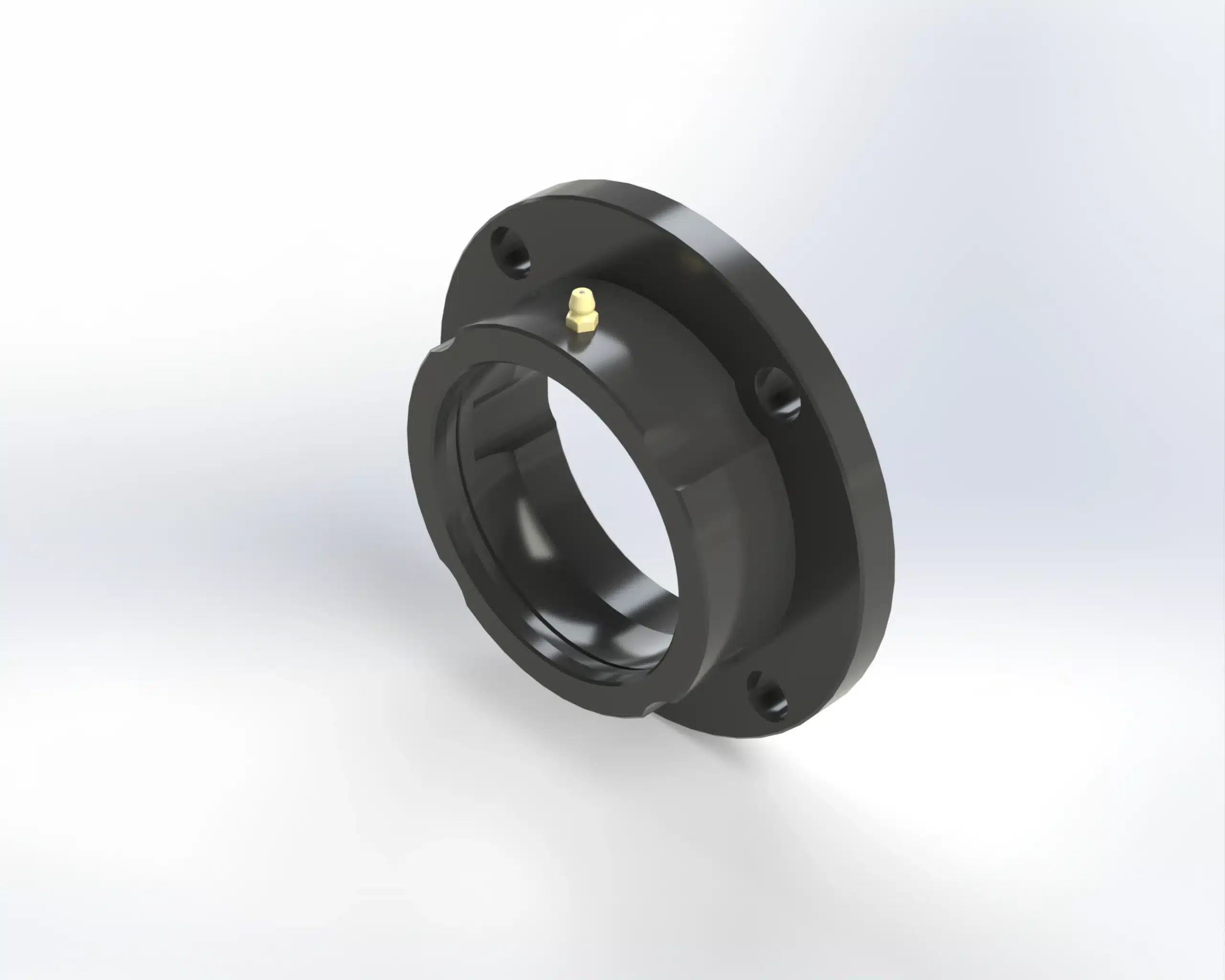

| BH90F6 | 90MM | 6" ROUND | 1-3/4" | 3-5/8" | 3" | 1/2" | 1/4-28NF | MADE TO ORDER | |

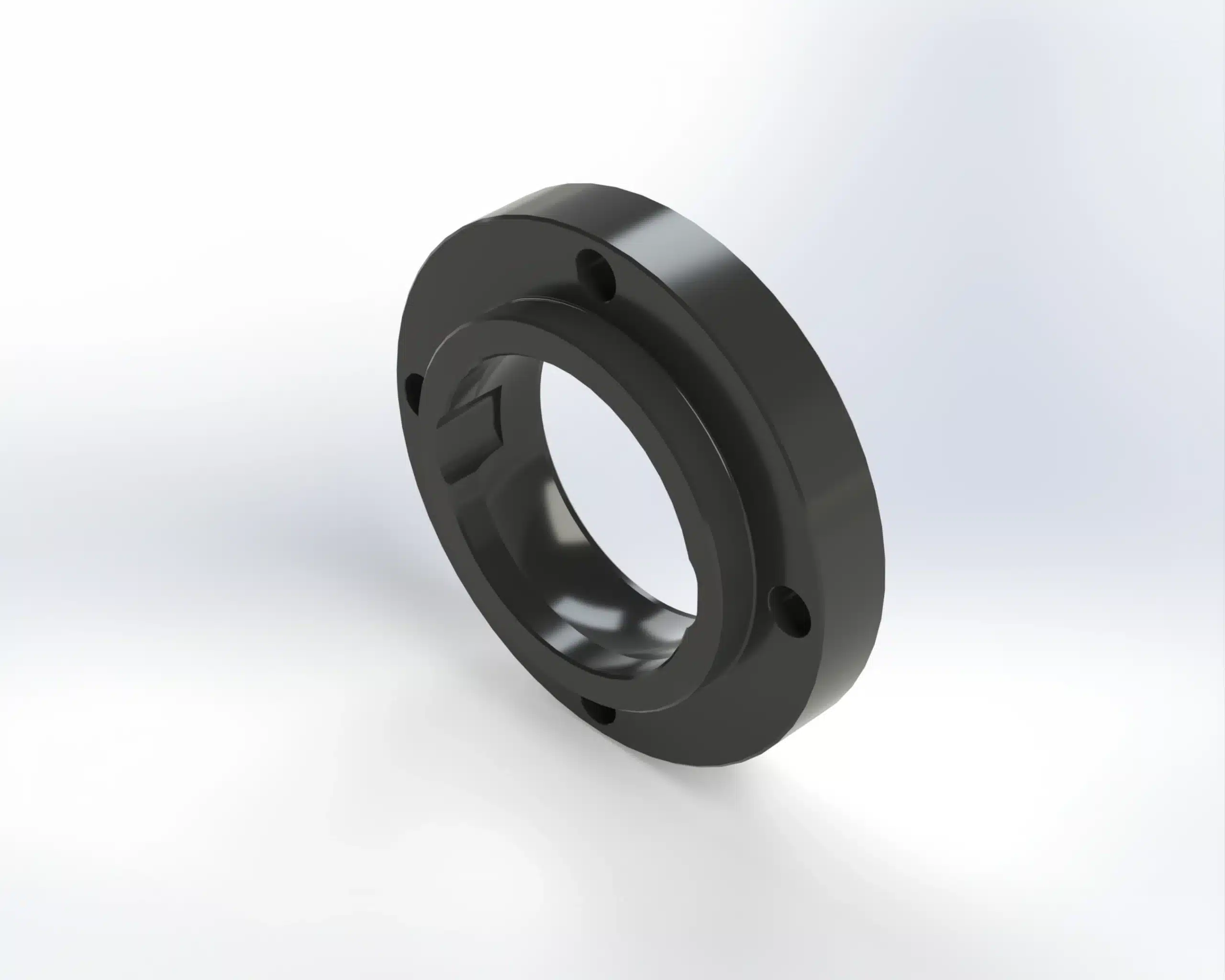

| BH90F61 | 90MM | 6" ROUND | 1-3/8" | 3-5/8" | 3" | 1/2" | 1/4-28NF | MADE TO ORDER | |

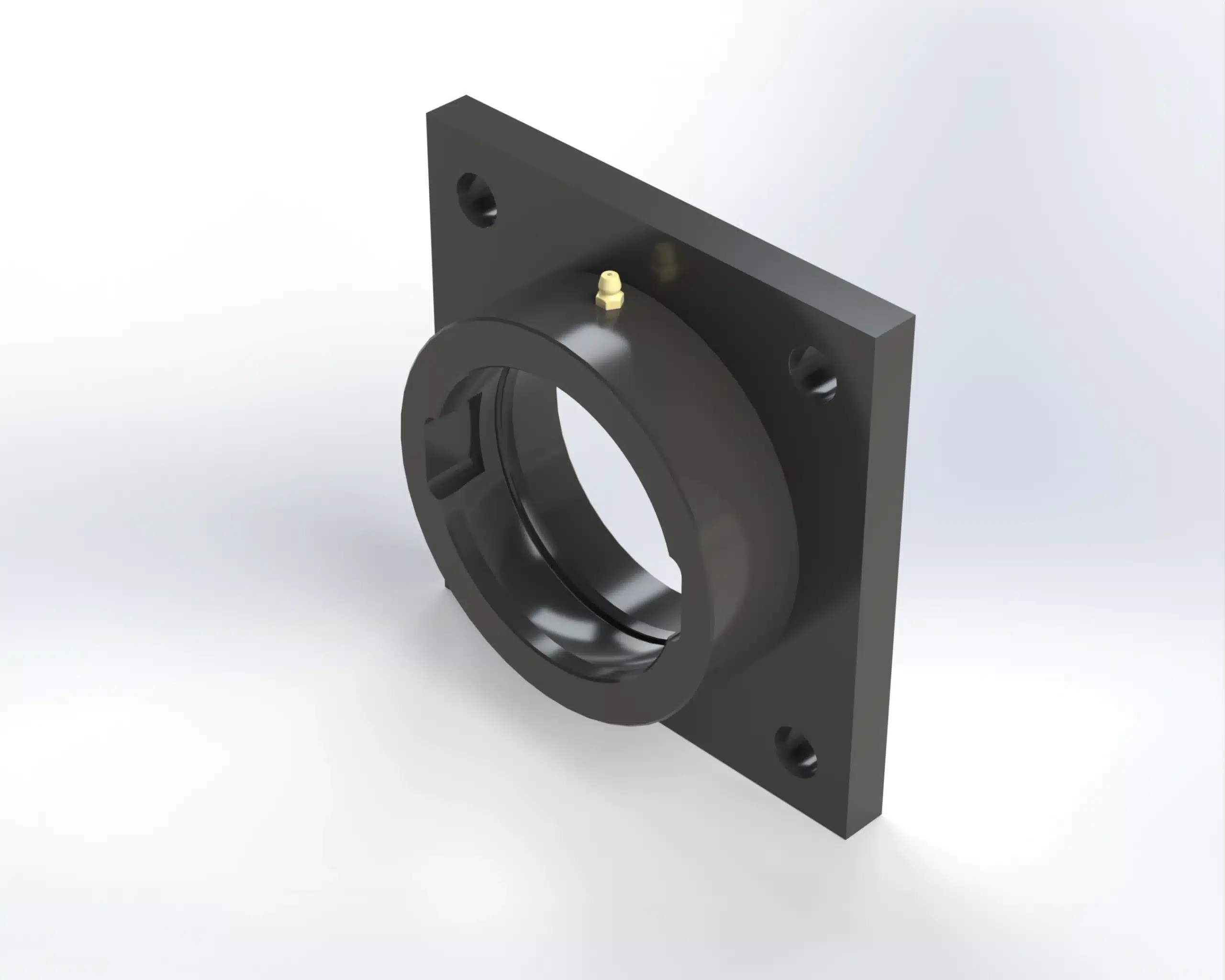

| BH100FA | 100MM | 7" | 2" | 5-1/8" | 3-1/2" | 5/8" | 1/4-28NF | MADE TO ORDER | |

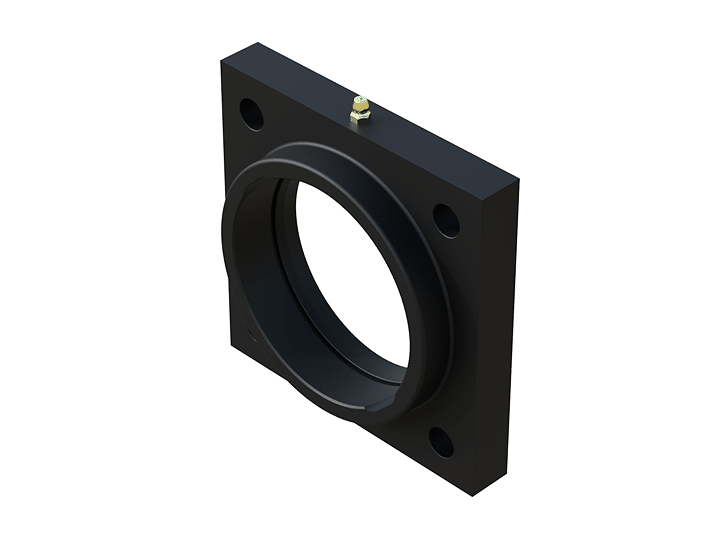

| BH100FP | 100MM | 5-1/2" | 1.4" | 4-1/8" | 2-3/4" | 1/2" | 1/4-28NF | MADE TO ORDER | |

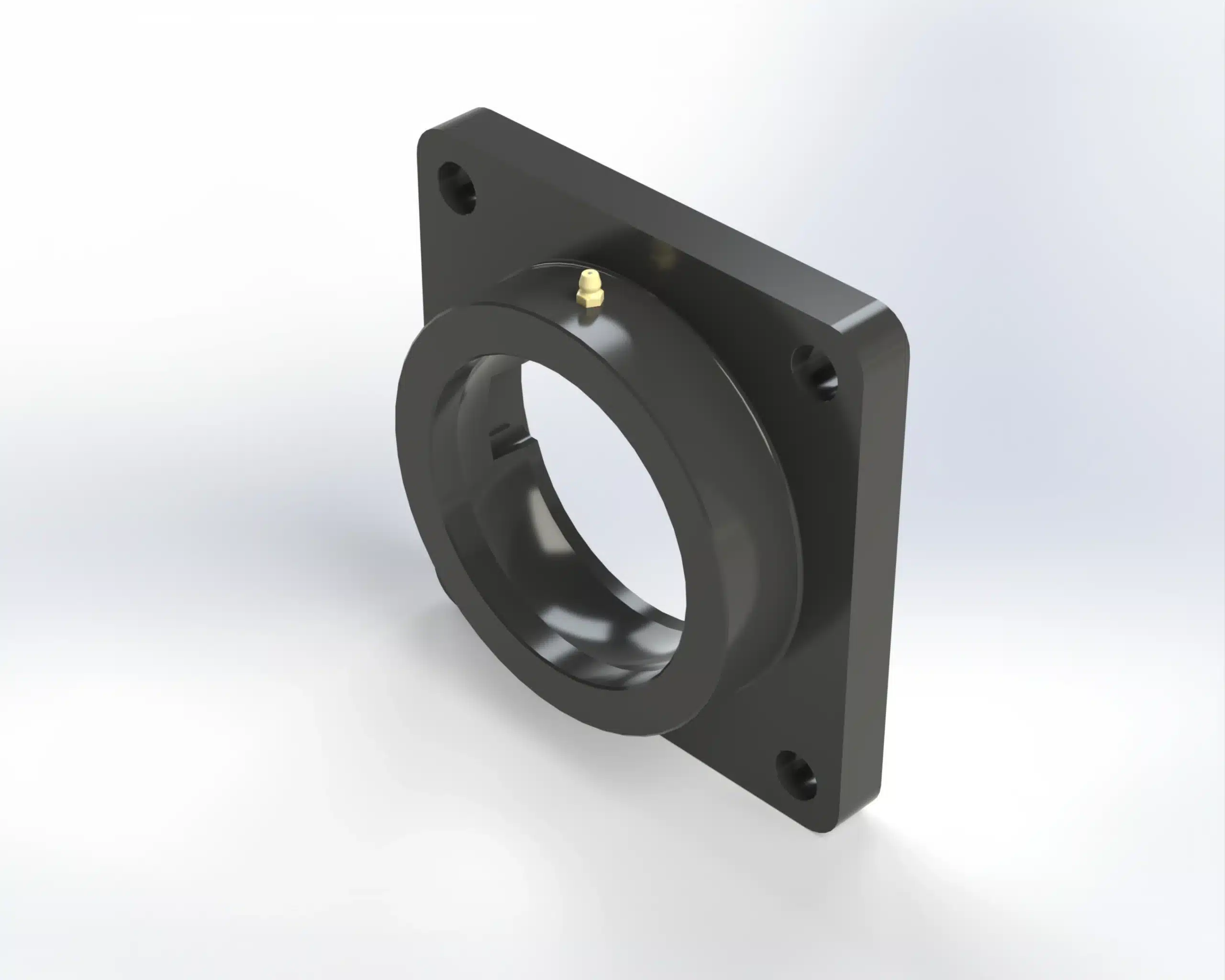

| BH110F | 110MM | 7" | 1-3/4" | 5-5/8" | 3-1/2" | 5/8" | 1/4-28NF | MADE TO ORDER | |

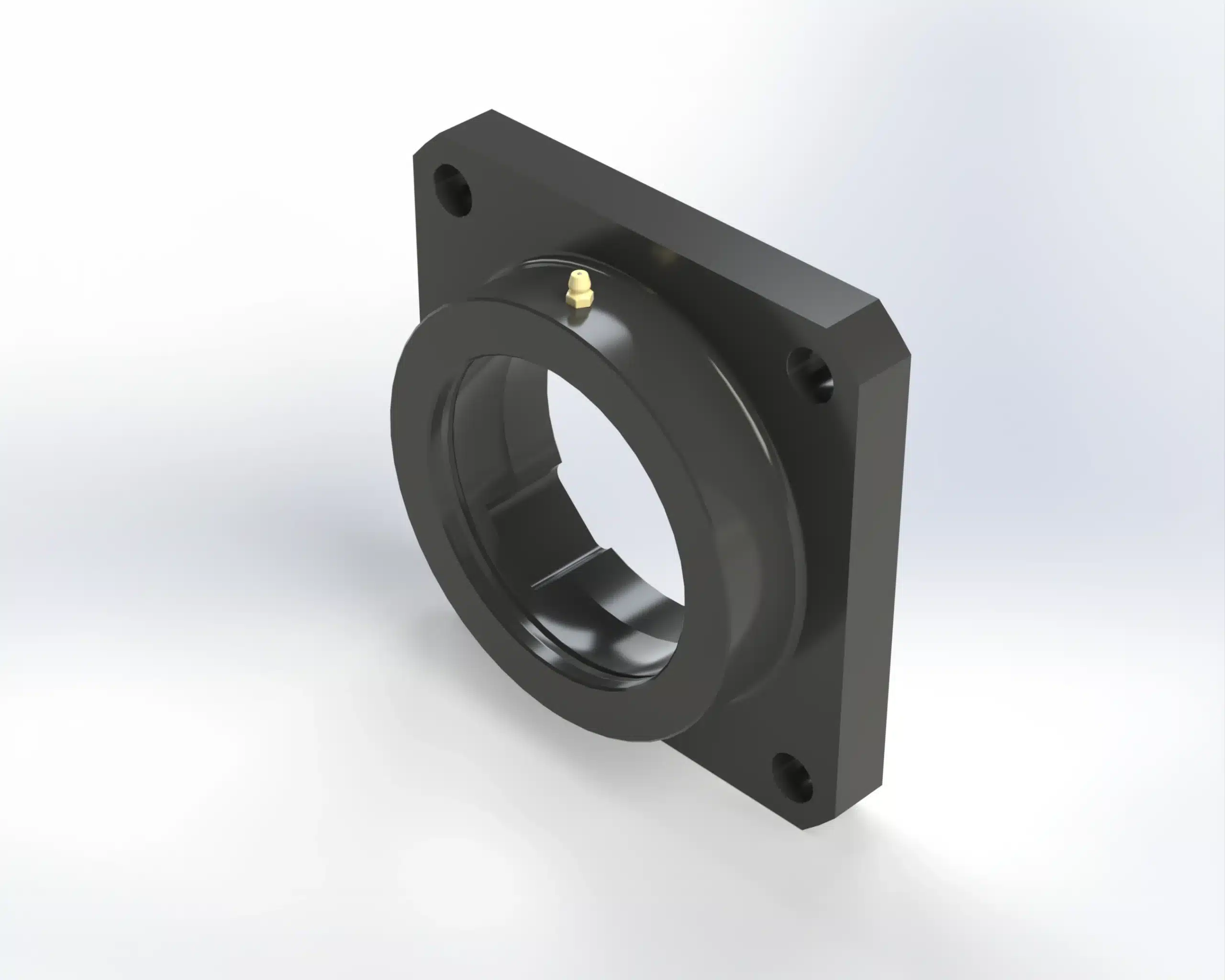

| BH110F-2 | 110MM | 7" | 2" | 5-5/8" | 3-1/2" | 5/8" | 1/4-28NF | MADE TO ORDER |
